VR 700 DC
Systemair (Villavent) VR 700 DC filters – original and compatible F7/G3, F7/G4, Nanowave and carbon sets (kit 14956)
In this category you will find original and high‑quality compatible filter kits for the horizontal ventilation unit Systemair (Villavent) VR 700 DC. All kits are also compatible with Systemair / Villavent VR 700 E.
The unit uses pocket filters with gasket. Unless stated otherwise, dimensions below are given without gasket – filters are supplied with gasket.
Original filter kit – VR 700 E/DC F7/G3 KF (art. 14956)
The original service kit for this model is VR 700 E/DC F7/G3 KF, article number 14956. It contains:
-
F7 / ePM 2,5 – supply air (outdoor air) pocket filter
Size: 425 × 211 × 330 mm, 7 pockets, supplied with gasket -
G3 / Coarse 50% – extract air pocket filter
Size: 197 × 429 × 250 mm, 3 pockets, supplied with gasket

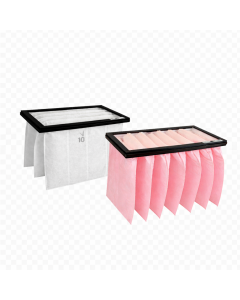

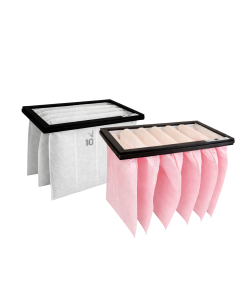

Original F7 + G3 filter kit for Systemair / Villavent VR 700 E and VR 700 DC: Systemair VR 700 DC – original filter kit, art. 14956

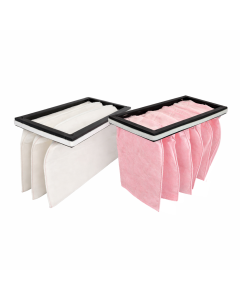

Compatible and premium alternatives
All compatible kits are manufactured according to the original filter dimensions and fit directly into the filter frames of VR 700 E and VR 700 DC.
-
Standard compatible kit F7/ePM1 65% + G4/Coarse – best price–performance
- Supply air: F7 / ePM1 65% – fine particle filtration equivalent to the original
- Extract air: G4 / Coarse – higher class than the original G3 / Coarse 50%
- Systemair VR 700 DC – standard compatible filter kit (F7/ePM1 65% + G4)
-
Nanowave / Premium kit F7/ePM1 65% + G4/Coarse – maximum fine dust filtration
- Supply air: F7 / ePM1 65% Nanowave – very high PM1 efficiency with low pressure drop
- Recommended for allergy sufferers and locations with high fine dust or urban pollution
- Systemair VR 700 DC – Nanowave premium filter kit (F7/ePM1 65% + G4)
-
Carbon filter kit – for odor and VOC reduction
- Supply air filters with an activated carbon layer for odor and gas reduction
- Ideal near busy roads, city centers, restaurants and industrial areas
- Systemair VR 700 DC – carbon filter kit
Which filter kit should I choose?
- Original kit (art. 14956) – when strict compliance with Systemair specifications, warranty or OEM‑only project requirements is important.
- Standard compatible F7/ePM1 65% + G4 – excellent balance of filtration performance and price; suitable for most residential and light commercial applications.
- Nanowave / Premium – for maximum fine particle removal and low pressure drop, ideal for allergy sufferers and high air quality demands.
- Carbon kit – if the main focus is on reducing odors and VOC in polluted or odor‑prone environments.
All kits listed here are designed for the horizontal units Systemair / Villavent VR 700 E and VR 700 DC, ensuring correct fit, filter classes and energy‑efficient operation.
Filter classes and dimensions – original kit 14956
-
Supply air filter (original)
Class: F7 / ePM1 65%
Type: pocket filter, 6 pockets
Size: 425 × 211 × 330 mm (without gasket) -
Extract air filter (original)
Class: G3 / Coarse 50%
Type: pocket filter, 3 pockets
Size: 197 × 429 × 250 mm (without gasket)
Compatible and Nanowave kits use the same nominal dimensions, with extract upgraded to G4 / Coarse in many sets for improved dust capture at a low pressure drop.
How often should VR 700 filters be replaced?
- 1–2 times per year in normal residential use
- More often if the building is near heavy traffic, industrial areas or construction sites
- Replace earlier if filters are visibly dirty or the unit shows a filter/service alarm
Installation tips (VR 700 E / VR 700 DC)
- Switch off the unit and disconnect power before opening the service door.
- Remove used filters carefully to avoid dust entering the unit and duct system.
- Check the airflow direction arrows on the filters and install them correctly.
- Ensure filters and gaskets sit tightly in the frames with no bypass air leaks.
Short FAQ
Which kit is recommended for normal home use?
For most homes, the standard compatible F7/ePM1 65% + G4 kit provides the best combination of indoor air quality, low pressure drop and cost.
When should I choose the original Systemair kit 14956?
Choose the original kit 14956 if you need full manufacturer compliance for warranty, documentation or specified OEM‑only projects.
When is a carbon filter kit useful?
Use the carbon filter kit when odor and VOC reduction is a priority, for example near roads with heavy traffic, restaurants, industrial plants or other odor sources.
